Body Temperature Detection Tower Mobile Sentry with Binocular thermal imaging
Specification

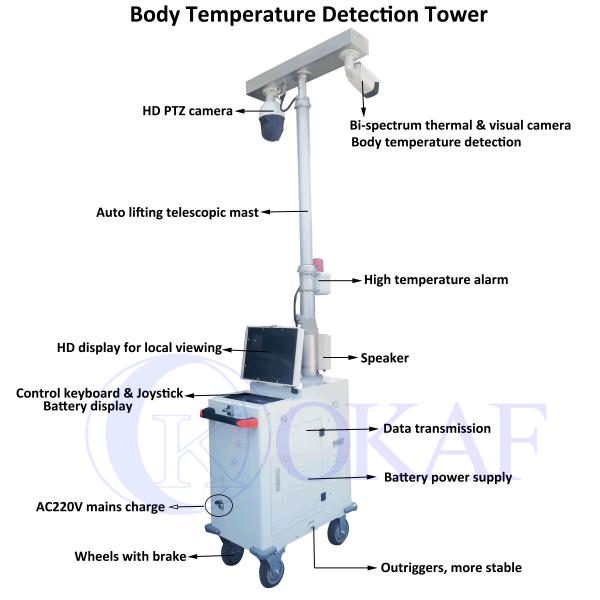

The Body Temperature Detection Tower composed of bi-spectrum bullet IP camera & HD PTZ camera system,Lifting system,Transmission & storage system, and trailer body. All in one integrated design, Easy to operate. Thermal camera lens 19mm temperature measurement distance 2~5 meter. Visual PTZ camera is 360 degree rotation . The system support detect & display body temperature of multiple persons. Temperature abnormal Warning.
The advantages of temperature measurement detection tower
1. Detect & display body temperature of multiple persons.
2. Thermal camera: Fast and accurate detection of body temperature.
3. Alarm attention: real time alert when abnormal temperature is detected.
4. With visual camera for mobile surveillance. the visual camera is zoom camera and 360 degree rotation,which realize no blind angle surveillance.
5. Via 4G transmission. Remote and local real time viewing and control.
6. With GPS function.
7. With speaker, could remote intercom.
8. The equipment could run for 2~7 days after full charge, according to different battery capacity.
9. The equipment is strong mobility.
10. Auto lifting telescopic mast, the camera height up and down could be adjustable.
11. No need to set points and wiring, reduce the cost of deployment, No need to disassemble,easy to use and operate.
Technical data
| Camera parameters |
| Thermal camera |
| Lens | 19mm |
| Resolution | 384*288 |
| Function | Human body temperature measurement,high temperature alarm |
| visual PTZ camera |
| Resolution | 1920×1080P, 2.0 megapixel |
| Frame rate | 25/30 fps |
| Audio video compression | H.264/H.265 |
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) |
| Audio mode | External active microphone or linear input, linear output |
| Network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP |
| Dual stream | Support |
| Video output | BNC & RJ45 output |
| Video parameters |
| Video input | 4 channels network 1080P, Aviation connector |
| Video output | 1 way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω |
| Preview function | 1 way ,4 screen splicing preview,support manual/ Event trigger full screen display function |
| Video resolution | Support 1080P,720P,D1,HD1, CIF optional , support up to 4 way 1080P. |
| Audio input | 4 way,Aviation connector |
| Audio output | 1 way |
| Compression format | G.711, rate 8KB/s |
| Alarm Output | 2 way switch output linkage sound and light alarm, cut off oil, etc. |
| Communication interface Communication interface | 2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc. |
| 2 way 485 interface,Expandable PTZ |
| 2way CAN bus interface |
| Wireless transmission | Support built in 3G wireless transmission function. WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE； |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE |
| Positioning | Support built-in GPS / BD module, can report to the standard platform |
| Hard disk | Supports large-capacity 2.5-inch hard disk (up to 2T) |
| Input voltage | DC:+8V ~ +38V |
| Power supply | |
| Battery | 100Ah/ 200Ah /400Ah optional |
| AC &DC | AC & DC power supply |
| Project | Test conditions |
| Height | 3.5 meter(can be customized according customer requirements) |
| Wind resistance | Class 8 winds work normally Class 12 winds are not destroyed |
| Low temperature storage | -55° |
| Low temperature work | -40° |
| High temperature storage | 70° |
| High temperature work | 55° |
| Humidity | Less than 90%(temperature 25°) |
| Rain | 6mm/min continuous 1h |
| Rated load | Lifting ≤120N |
| Lifting speed | Average speed 4m/min |
| Safety | Self-locking at any height |
Applications

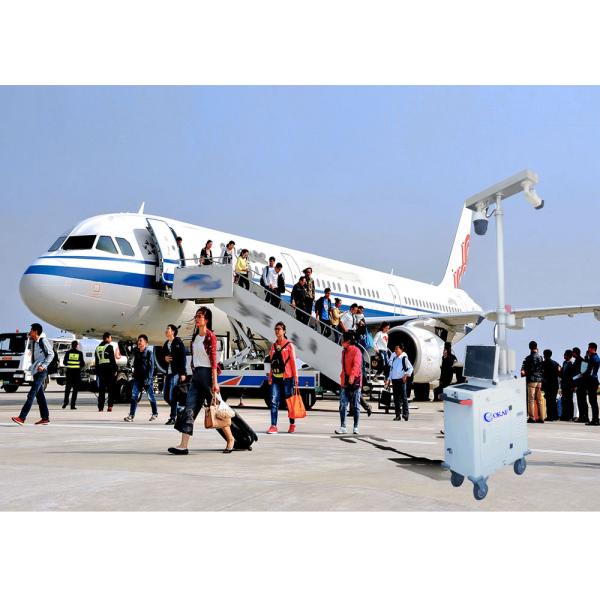

For dragging on coronavirus outbreak, body temperature measurement solution for checking body temperature in anytime and anywhere such as school, commercial building, airport and construction site entrance to secure public health.
